Single row four-point contact ball rotary ring (01 Series)

Detailed description：

Product introduction：

The single-row four-point contact ball slewing ring is composed of two seats, which is compact, and the steel ball is in contact with the circular roller. Is mainly used for truck crane, tower crane, excavator, car driver, engineering work, such as radar equipment under negative moment, the tendency of vertical axial force, horizontal force on the mechanical。

JB/T2300-1999

Product parameters：

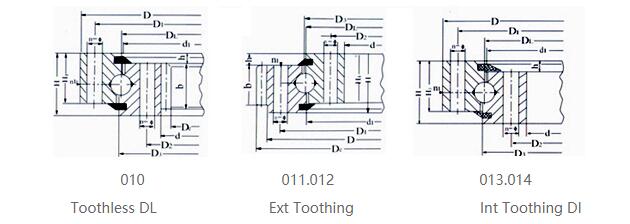

number	Basic type			Configuration			Mounting size				Structural size				Gear Data				Gear Data		Int Gear		Tooth lood		Rete rence weight
	Toothless DL mm	Ext Toothing DL mm	Int Toothing Dl mm	D mm	d mm	H mm	D1 mm	D2 mm	n mm	φ mm	D3 mm	d1 mm	H1 mm	h mm	h mm	b mm	x mm	m mm	De mm	Z	De mm	Z	Z 104N	T 104N	kg
1	010 20.315	011.20.315	013.20.315	408	222	60	372	258	16	18	2	316	314	50	10	45	0	5	435	85	195	41	2.9	4.4	36
2	010.20.355	011.20.355	013.20.355	448	262	60	412	298	16	18	2	356	354	50	10	45	0	5	475	93	235	49	2.9	4.4	42
3	010 20.400	011.20.400	013.20.400	493	307	60	457	343	20	18	2	401	399	50	10	45	0	6	528	86	276	48	3.5	5.3	48
4	010 20.450	011.20.450	013.20.450	543	357	60	507	393	20	18	2	451	449	70	10	45	0	6	576	94	324	56	4.5	6.2	52
5	010 30.500	011.30.500	013.30.500	602	398	80	566	434	20	18	4	501	498	70	10	60	+0.5	5 6	629	123	367	74	3.7	5.2	85
		012.30.500	014.30.500																928.8	102	368.4	62	4.5	6.2
5′	010 25.500	011.25.500	013.25.500	602	398	80	566	434	20	18	4	501	499	70	10	60	+0.5	5 6	629	123	367	74	3.1	4.3	85
		012.25.500	014.25.500																628.8	102	368.4	62	3.8	5.2
6	010.30.560	011.30.560	013.30.560	662	458	80	626	494	20	18	4	561	558	70	10	60	+0.5	5 6	689	135	427	86	3.7	5.2	95
		012.30.560	014.30.560																688.8	112	428.4	72	4.5	6.2
6′	010.25.560	011.25.560	013.25.560	662	458	80	626	494	24	18	4	561	559	70	10	60	+0.5	5 6	689	135	427	86	3.1	4.3	95
		012.25.560	014.25.560																688.8	112	428.4	72	3.8	5.2
7	010.30.630	011.30.630	013.30.630	732	528	80	696	564	24	18	4	631	628	70	10	60	+0.5	6 8	772.8	126	494.4	83	4.5	8.3	110
		012.30.630	014.30.630																774.4	94	491.2	62	6.0	5.2
7′	010.25.630	011.25.630	013.25.630	732	528	80	696	564	24	18	4	631	629	70	10	60	+0.5	6 8	772.8	126	494.4	83	3.8	6.9	110
		012.25.630	014.25.630																774.8	94	491.2	62	5.0	6.2
8	010.30.710	011.30.710	013.30.710	812	608	80	776	644	24	18	4	711	708	70	10	60	+0.5	6 8	850.8	139	572.4	96	4.5	6.2	120
		012.30.710	014.30.710																854.4	104	571.2	72	6.0	8.3
8′	010.25.710	011.25.710	013.25.710	812	608	80	776	644	30	18	4	711	709	70	10	60	+0.5	6 8	850.8	139	572.4	96	3.8	5.2	120
		012.25.710	014.25.710																854.4	104	571.2	72	5.0	6.9
9	010.40.800	011.40.800	013.40.800	922	678	100	878	722	30	22	6	801	798	90	10	80	+0.5	8 10	966.4	118	635.2	80	8.0	11.1	219
		012.40.800	014.40.800																968	94	634	64	10.0	14.0
9′	010.30.800	011.30.800	013.30.800	922	678	100	878	722	30	22	6	801	798	90	10	80	+0.5	8 10	966.4	118	635.2	80	6.0	8.3	219
		012.30.800	014.30.800																968	94	634	64	7.5	10.5
10	010.40.900	011.40.900	013.40.900	1022	778	100	978	822	30	22	6	901	898	90	10	80	+0.5	8 10	1062.4	1130	739.2	93	8.0	11.1	244
		012.40.900	014.40.900																1068	104	734	74	10.0	14.0
10′	010.30.900	011.30.900	013.30.900	1022	778	100	978	822	36	22	6	901	898	90	10	80	+0.5	8 10	1062.4	130	739.2	93	6.0	8.3	244
		012.30.900	014.30.900																1068	104	734	74	7.5	10.5
11	010.40.1000	011.40.1000	013.40.1000	1122	878	100	1078	922	36	22	6	1001	998	90	10	80	+0.5	10 12	1188	116	824	83	10.0	14.0	284
		012.40.1000	014.40.1000																1185.6	96	820.8	69	12.0	16.7
11′	010.30.1000	011.30.1000	013.30.1000	1122	878	100	078	922	36	22	6	1001	998	90	10	80	+0.5	10 12	1188	116	824	83	12.5	10.5	284
		012.30.1000	014.30.1000																1185.6	96	820.8	69	9.0	12.5
12	010.40.1120	011.40.1120	013.40.1120	1242	998	100	1198	1042	36	22	6	1121	1118	90	10	80	+0.5	10 12	1298	127	944	95	10.0	14.0	318
		012.40.1120	014.40.1120																1305.6	106	940.8	79	12.0	16.7
12′	010.30.1120	011.30.1120	013.30.1120	1242	998	100	1198	1042	40	22	6	1121	1118	90	10	80	+0.5	10 12	1298	127	944	95	7.5	10.5	318
		012.30.1120	014.30.1120																1305.6	106	940.8	79	9.0	12.5
13	010.45.1250	011.45.1250	013.45.1250	1390	1110	110	1337	1163	40	26	5	1252	1248	100	10	90	+0.5	12 14	1449.6	127	1048.8	88	13.5	18.8	438
		012.45.1250	014.45.1250																1453.2	106	1041.6	75	15.8	21.9
13′	010.35.1250	011.35.1250	013.35.1250	1390	1110	110	1337	1163	40	26	5	1251	1248	100	10	90	+0.5	12 14	1449.6	118	1048.8	88	10.5	14.6	438
		012.35.1250	014.35.1250																1453.2	101	1041.6	75	12.3	17.0
14	010.45.1400	011.45.1400	013.45.1400	1540	1260	110	1487	1313	40	26	5	1402	198	100	10	90	+0.5	12 14	1605.6	118	1192.8	100	13.5	18.8	501
		012.45.1400	014.45.1400																16.7.2	101	1195.6	86	15.8	21.9
14′	010.35.1400	011.35.1400	013.35.1400	1540	1260	110	1487	1313	40	26	5	1401	1398	100	10	90	+0.5	12 14	1605.6	131	1192.8	100	10.5	14.6	501
		012.35.1400	014.35.1400																16.7.2	121	1195.6	86	12.3	17.0
15	010.45.1600	011.45.1600	013.45.1600	1740	1460	110	1687	1513	45	26	5	1602	1598	100	10	90	+0.5	14 16	1817.2	131	1391.6	100	15.8	21.9	584
		012.45.1600	014.45.1600																1820.8	121	1382.4	87	18.1	25.0
15′	010.35.1600	011.35.1600	013.35.1600	1740	1460	110	1687	1513	45	26	5	1601	1598	100	10	90	+0.5	14 16	1817.2	127	1391.6	100	12.3	17.0	584
		012.35.1600	014.35.1600																1820.8	111	1382.4	87	14.1	19.4
16	010.45.1800	011.45.1800	013.45.1800	1940	1660	110	1887	1713	45	26	5	1802	1798	100	10	90	+0.5	14 16	2013.2	127	1573.6	113	15.8	21.9	639
		012.45.1800	014.45.1800																2012.8	111	1574.4	99	18.1	25.0
16′	010.35.1800	011.35.1800	013.35.1800	1940	1660	110	1887	1713	48	33	5	1801	1798	100	10	90	+0.5	14 16	2013.2	141	1573.6	113	12.3	17.0	639
		012.35.1800	014.35.1800																2012.8	123	1574.4	99	14.1	19.4
17	010.60.2000	011.60.2000	013.60.2000	2178	1825	144	2110	1891	48	33	8	2002	1998	132	12	120	+0.5	16 18	2268.8	141	1734.4	97	24.1	33.3	1170
		012.60.2000	014.60.2000																2264.4	123	1735.2	109	27.1	37.5
17′	010.40.2000	011.40.2000	013.40.2000	2178	1825	144	2110	1891	48	33	8	2001	1998	132	12	120	+0.5	16 18	2492.8	141	1734.4	97	16.1	22.2	1170
		012.40.2000	014.40.2000																2498.4	123	1735.2	125	18.1	25.033.3
18	010.60.2240	011.60.2240	013.60.2240	2418	2065	144	2350	2131	48	33	8	2242	2238	132	12	120	+0.5	16 18	2492.8	139	1990.4	111	24.1	37.5	1294
		012.60.2240	014.60.2240																2498.4	123	1987.2	125	27.1	22.2
18′	010.40.2240	011.40.2240	013.40.2240	2418	2065	144	2350	2131	56	33	8	2241	2238	132	12	120	+0.5	16 18	2768.4	139	1990.4	111	16.1	25.0	1294
		012.40.2240	014.40.2240																2776	123	1987.2	125	18.1	37.5
19	010.60.2500	011.60.2500	013.60.2500	2678	2325	144	2610	2391	56	33	8	2502	2498	132	12	120	+0.5	18 20	2768.4	153	2239.2	112	27.1	41.8	1509
		012.60.2500	014.60.2500																2776	136	2228	125	30.1	25.0
19′	010.40.2500	011.40.2500	013.40.2500	2678	2325	144	2610	2391	56	33	8	2501	2498	132	12	120	+0.5	18 20	3074.4	153	2239.2	112	18.1	27.9	1509
		012.40.2500	014.40.2500																3076	136	2228	125	20.1	37.5
20′	010.60.2800	011.60.2800	013.60.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	18 20	3074.4	151	2527.2	112	27.1	41.8	1670
		012.60.2800	014.60.2800																3076	136	2528	141	30.1	25.0
21′	010.40.2800	011.40.2800	013.40.2800	2978	2625	144	2910	2691	56	45	8	2801	2798	132	12	120	+0.5	18 20	3476	151	2527.2	112	18.1	27.9	1670
		012.40.2800	014.40.2800																3471.6	136	2528	141	20.1	52.2
22	010.75.3150	011.75.3150	013.75.3150	3376	2922	174	3014	3014	56	45	8	3152	3147	162	12	150	+0.5	18 20	3476	168	2828	127	37.7	57.4	2873
		012.75.3150	014.75.3150																3471.6	151	2824.8	141	41.5	41.8
22′	010.50.3150	011.50.3150	013.50.3150	3376	2922	174	3014	3014	56	45	8	3151	3147	162	12	150	+0.5	18 20	3476	168	2828	142	37.7	25.0	2873
		012.50.3150	014.50.3150																3471.6	151	2824.8	129	41.5	27.9
